Dumbwaiter Elevator
Monte Charge Lift, Microlift
Bench Alignment

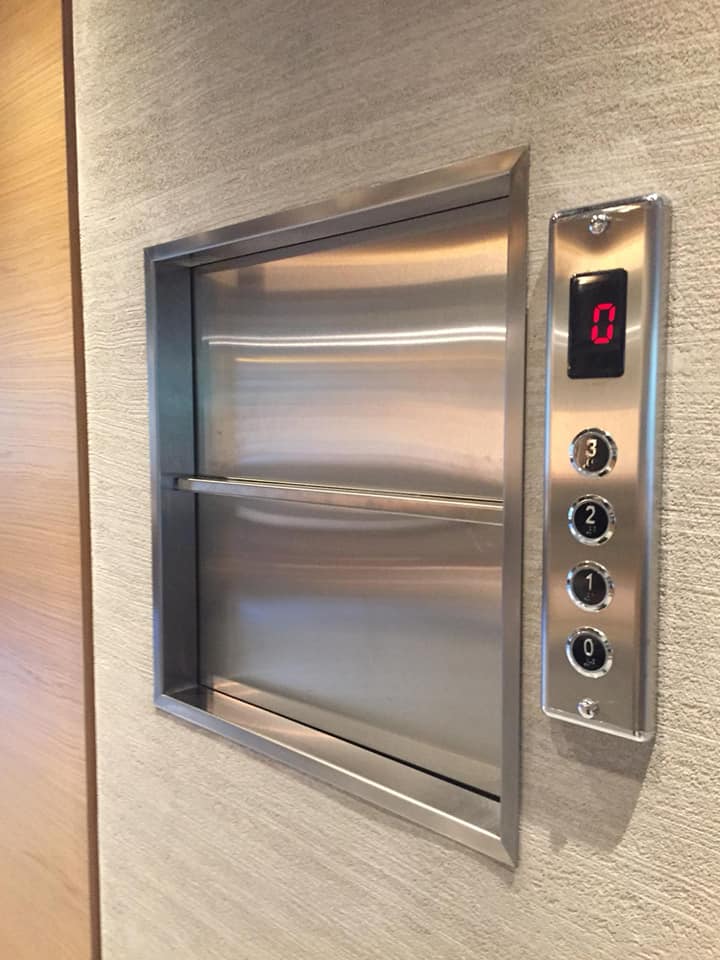

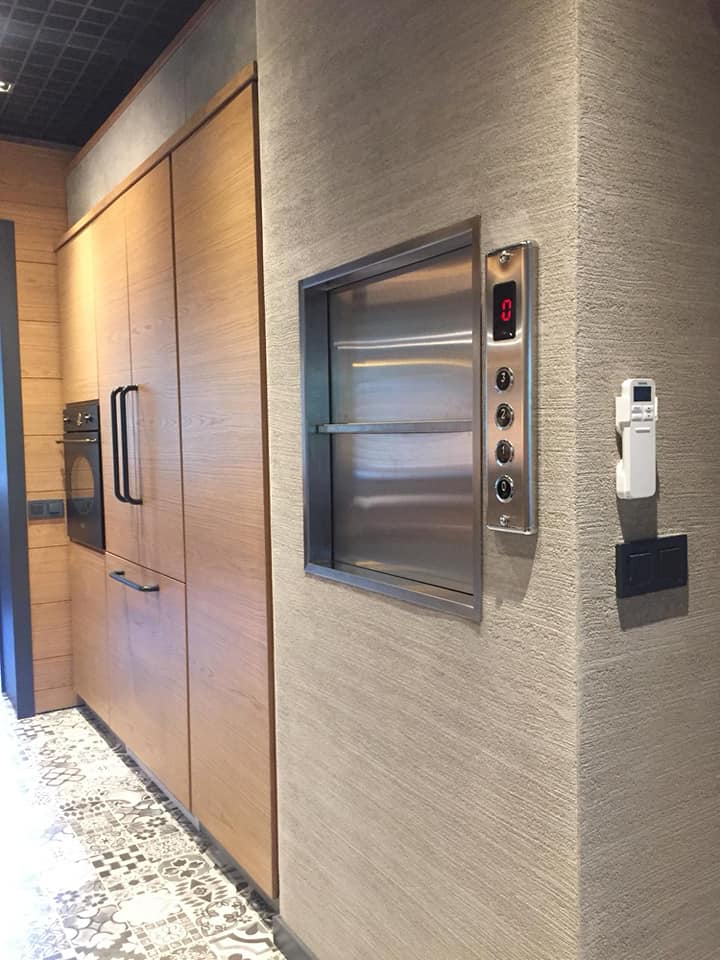

Guillotine Door
In guillotine door-mounted elevators; there is no need for well (pit). Guillotine doors are usually installed at the bench or waist level higher than 80 cm or 90 cm.
Ground Level
Manual Doors
In manual doors for monte-charge elevators; a well (pit) is needed. Manual doors are mounted at 15 cm higher than ground level.
Same Direction
Single entry
Access is provided from the same side on each floor.
Right or Left
Cross Entry
Front access on ground level, rear access on others floors( right or left).
Go-through Access
Double Access
Entrance from the front side, optional entrance from back at the top floor.
3 Sided
Triple-cross Entry
Entry from 3 sides.
Steel Conveyance (Hygienic Conditions, Body Strength, Screw System)
Machine: Origin: Italy
304 Quality Stainless Steel
Electronic - Digital System
Send Call System
With Guillotine Door (Stainless)
Rack Cabinets
Complete Package Material
2 Year Warranty
Project Support is provided
Assembly Team Included with additional fee.
Door Feature: Guillotine 304 Quality Stainless
Cabinet Feature: 304 Quality Stainless / Shelf System
Pushbuttons: Stainless / Microswitch / Send Call System
EXTRAS
Audio Warning (Optional)
Cabin Door (Optional)
100 kg - 250 kg - 320 Kg - 500 Kg
For 400x400x400 mm Cabin size the necessary shaft dimensions;
Well Width: 750 mm
Well Length : 650 mm
Pit: No Need
For 450x450x450 mm Cabin size the necessary shaft dimensions;
Well Width : 800 mm
Well Length : 700 mm
Pit: No Need
For 500x500x500 mm Cabin size the necessary shaft dimensions;
Well Width : 850 mm
Well Length: 750 mm
Pit: No Need
For 600x600x600 mm Cabin size the necessary shaft dimensions;
Well Width : 950 mm
Well Length : 850 mm
Pit: No Need
For 700x700x700 mm Cabin size the necessary shaft dimensions;
Well Width : 1050 mm
Well Length : 950 mm
Pit: No Need
For 800x800x800 mm Cabin size the necessary shaft dimensions;
Well Width: 1150 mm
Well Length : 1050 mm
Pit: No Need
For 900x900x900 mm Cabin size the necessary shaft dimensions;
Well Width : 1250 mm
Well Length : 1150 mm
Pit: No Need
380 V Required For Electrical Wiring
Motor power: 0.75 KW or 1.5 KW
Electrical panel can be placed on the entrance floor or in machine room.
There must be 25 Ampers fuse in the electrical panel.
5x2.5 mm cabling should be ready until the elevator panel is installed.
